Rangate Interior/Exterior Door Set
R1D002 (Mortise/Tenon) or R1D008 (M/T+Dowel/Biscuit)

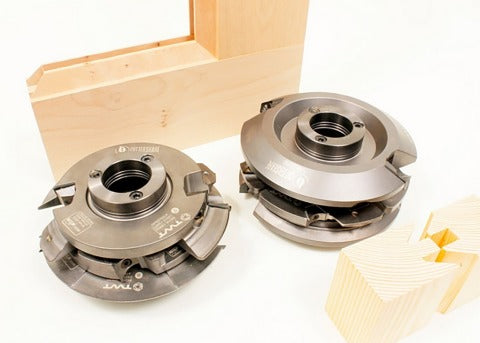

This shaper door set tool for making the stile and rail of interior or exterior doors. The included profile is "slant" or profile #2 (P2), and the finish stock thickness at 1-3/4" with tool bore at 1-1/4". The 2" and 2-1/4" material thicknesses can be adapted along with three (3) additional profiles with an additional purchase of insert knives. The required spacers are already included with the set for different setups.
This door set is for the Mortise & Tenon Joinery. Additional tool elements (discs) can be added in the future for the Dowel/Biscuit joinery, or get the whole set in a full as our R1D008 set.. Growing with your needs is the key to these toolsets. Only spend more when you have the projects. We work diligently on our toolsets based on this mission to help our client invests the right tools at the right time.
Our Stile and Rail set has greatly simplified the milling of classically styled kitchen cabinet doors. The cutter set is designed for fast and easy stile to rail milling and delivers smooth and finish-quality cuts.
Bore size:
- R1D002: 1-1/4" (for Mortise and Tenon Joinery)
-
R1D008: 1-1/4" (for M/T + Rebate Elements for Dowel Joinery
Tool Drawings:
